Layer settings

A layer's settings dialog offers many options for modifying properties of your layer.

Tip

The layer will update dynamically as you change settings, but you can always undo your changes with the Cancel button!

Basic layer settings

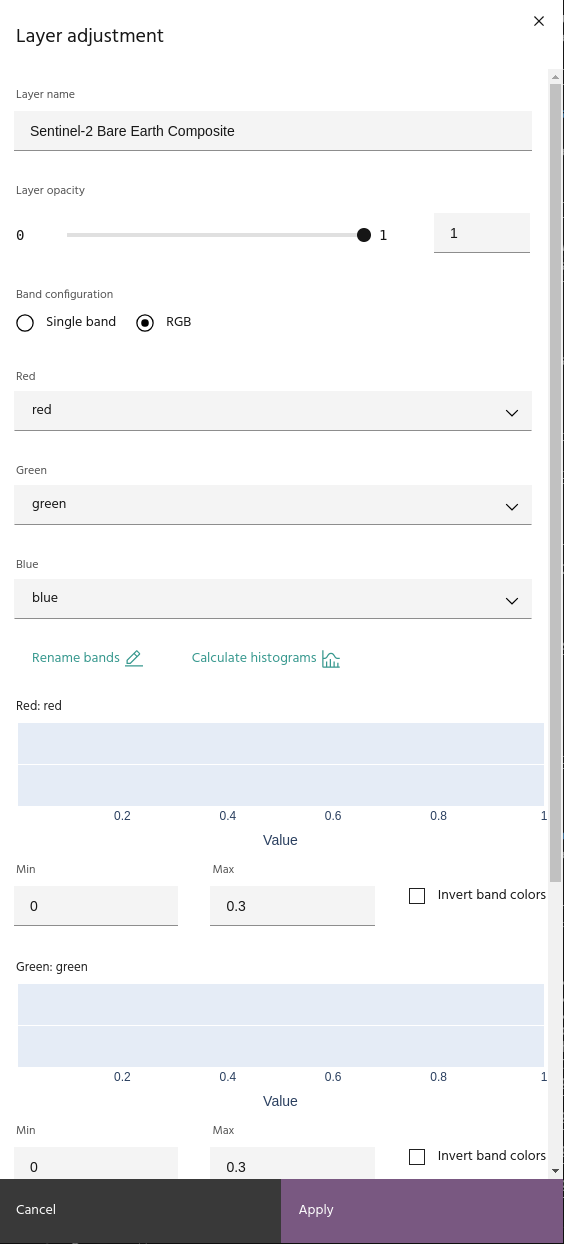

The first page of the dialog contains basic layer settings such as name, visible bands, and display contrast.

Rename a layer

Click the Layer name text box in the Layer adjustment dialog box and edit the layer name. The name will change in the layer list automatically.

Adjust layer transparency

Use the slider or text box to adjust the opacity of the layer (0 is completely transparent).

Rename bands

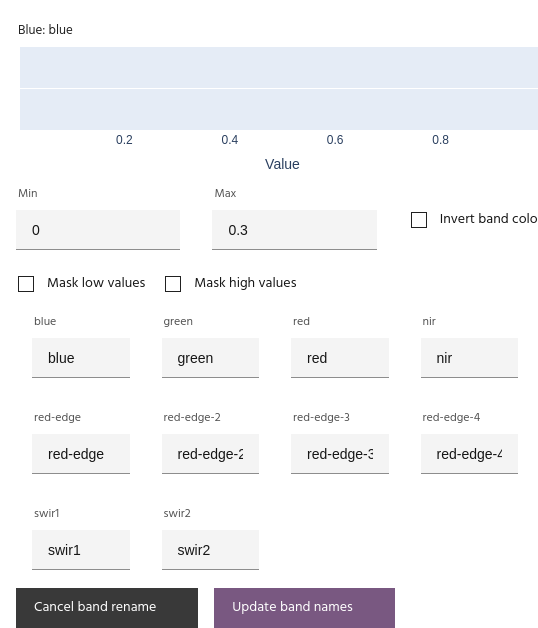

Click Rename bands. Use the text boxes to update band names, then click Update band names to save.

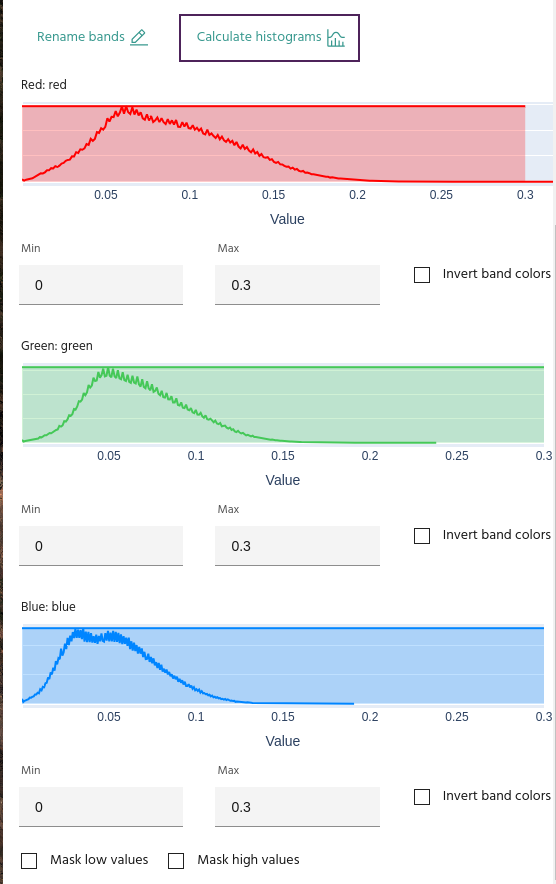

Calculate histograms

Click Calculate histograms to see the distribution of values for each of the bands selected in the visualized channels. You can use this information to manually rescale the bands, use as a reference for custom expressions in the Raster calculator, or simply gain an understanding of the data distribution.

Rescale bands

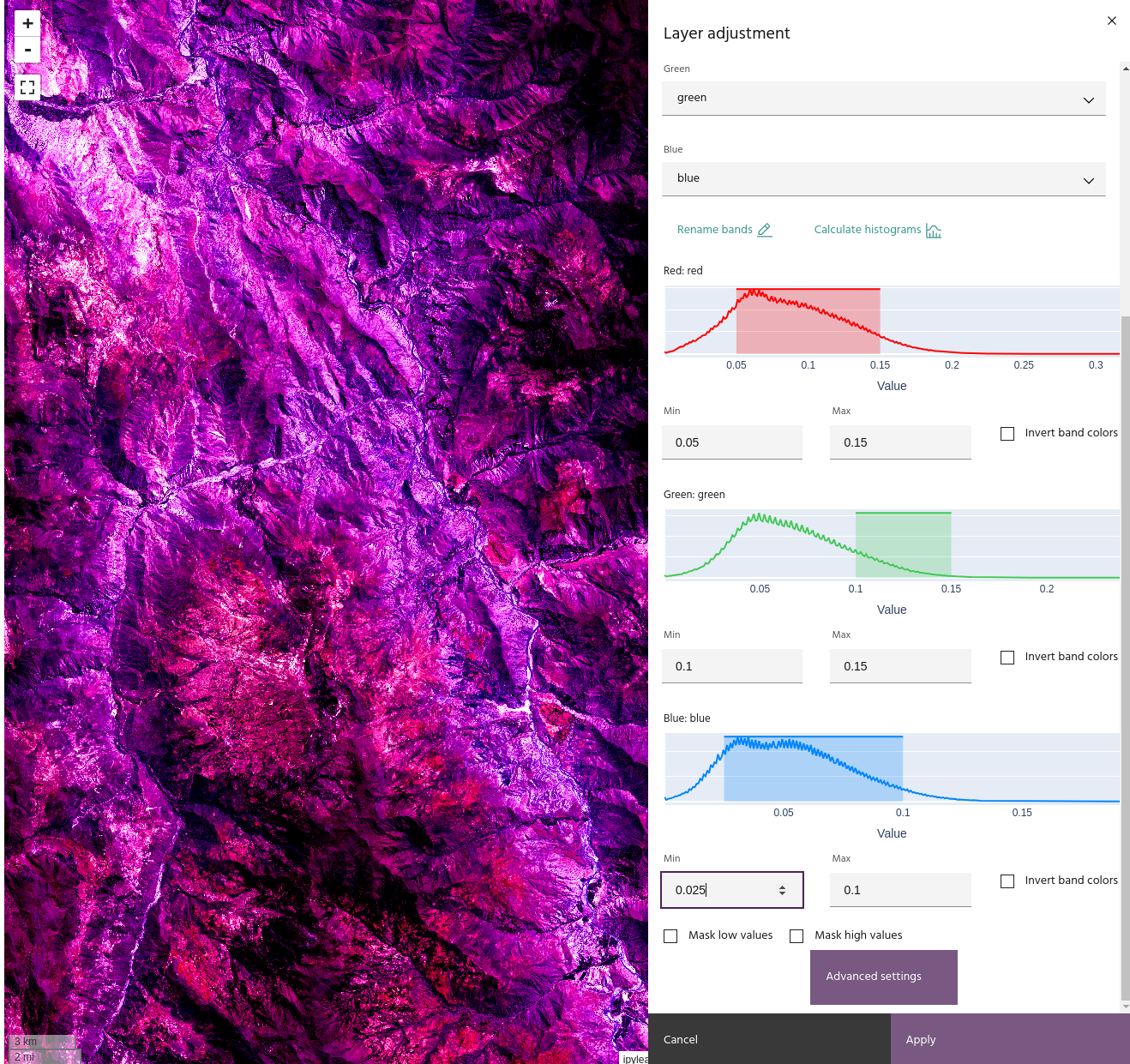

Use the Min and Max text boxes to enter the minimum and maximum values for the corresponding band. If you have histograms calculated, a shaded box covering the selected range will appear over the histogram.

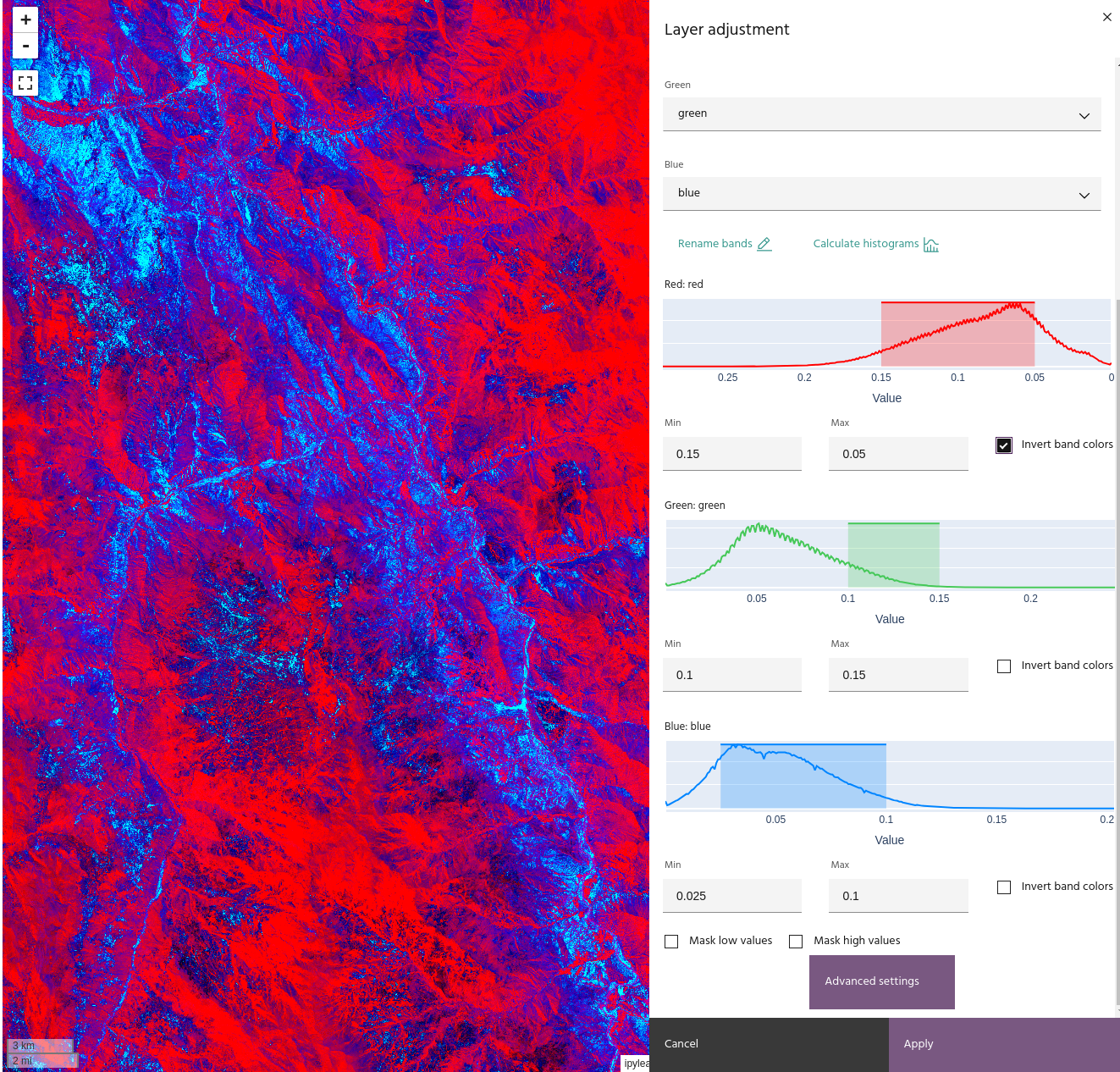

Selecting Invert band colors will display the data with the minimum value as the brightest color instead of the darkest, and vice versa for the maximum.

Tip

When inverting a band, the histogram will display the "flipped" data.

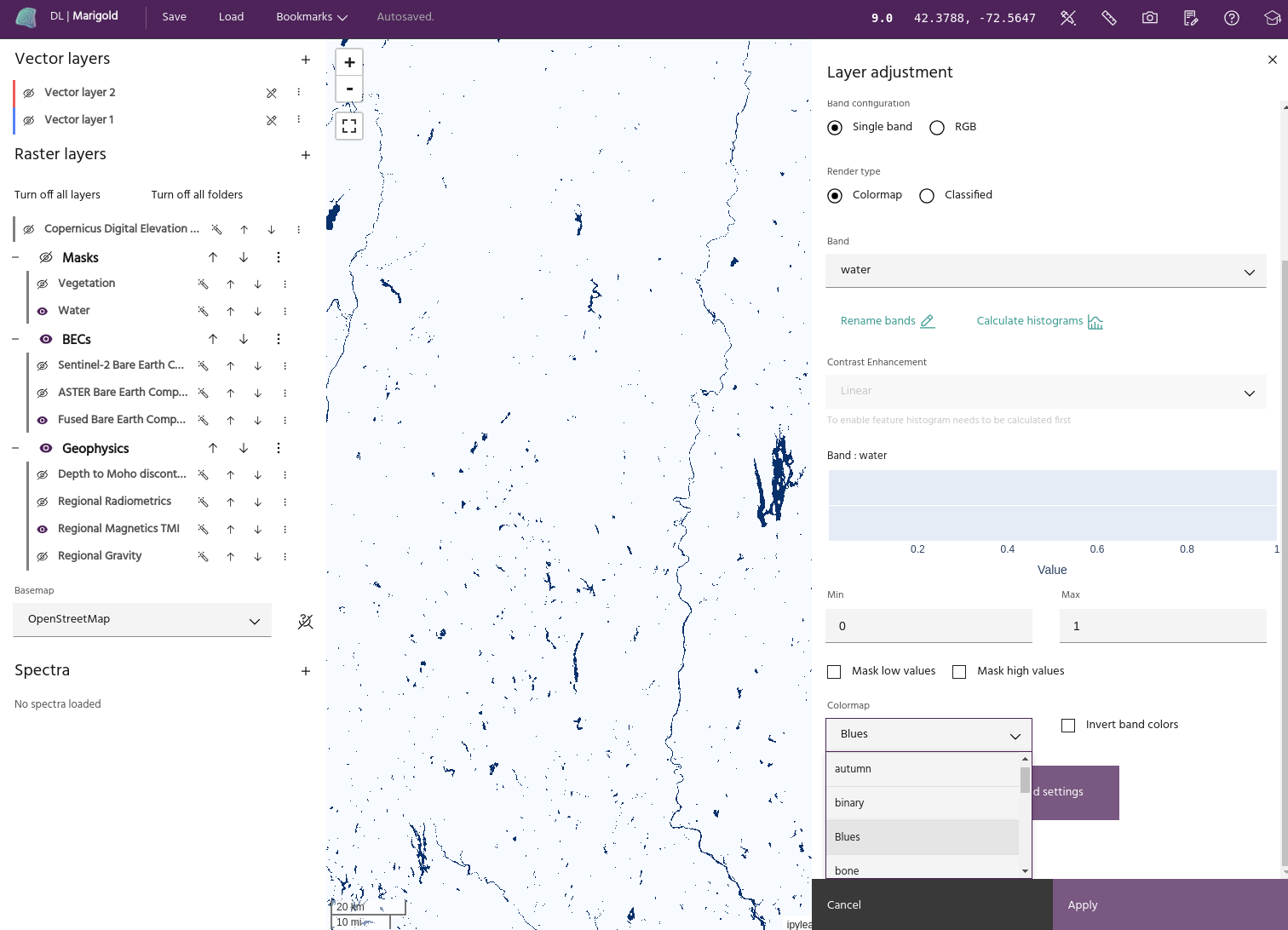

Apply a colormap to a layer

Single band images are displayed using a colormap. Select Single band from the band configuration, and choose the desired band in the Band dropdown. Select the colormap you want to apply from the Colormap dropdown menu to display the band with that colormap.

Info

Marigold uses Matplotlib colormaps to display single band data. More information about these colormaps can be found here

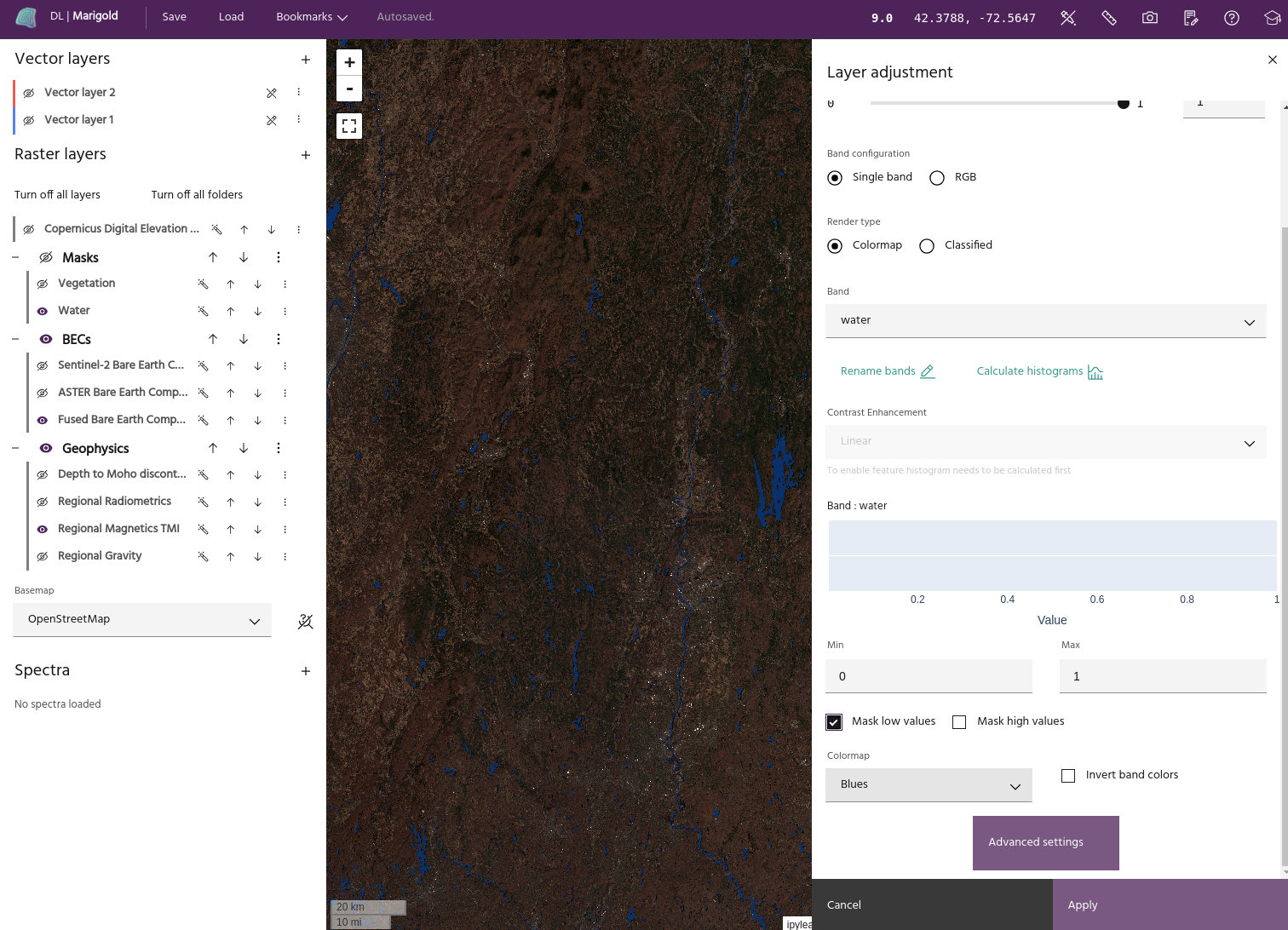

Extrema masking

Low and/or high values can be masked by selecting Mask low values and Mask high values.

Tip

For RGB layers, masks will be applied when all bands values are outside of the limits. This has the effect of masking black pixels for low masking and white pixels for high masking.

Advanced layer settings

Clicking the Advanced layer settings at the bottom of the dialog will bring up advanced visualization options for the layer.

Warning

Advanced visualization settings are not yet available for Classified layers.

Apply hillshade to layer

Note

Only layers created by the hillshade dialog can be used as a hillshade.

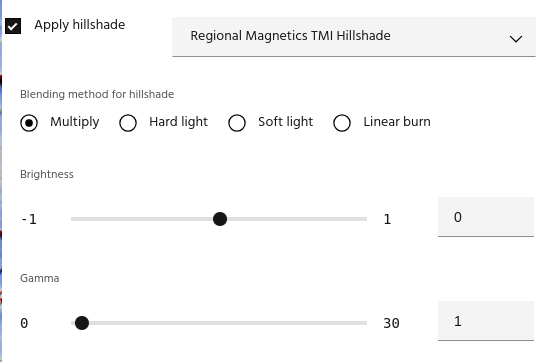

Once you have a hillshade layer in your project, you can apply it to a layer using several blending options:

Multiply: simply multiply the hillshade and the base layer.

\[ Shaded = Base \cdot Hillshade \]

Tip

Since hillshade values are from 0-1, Multiply blending will always darken the base layer.

Hard light: A combination of Multiply and its inverse that darkens low shade areas and brightens brighter ones.

\[ Shaded = \begin{cases} 2 \cdot Base \cdot Hillshade & \text{if } Hillshade < 0.5 \\\\ 1 - 2 \cdot ( 1 - Base ) \cdot ( 1 - Hillshade ) & \text{otherwise} \end{cases} \]

Soft light: A gentler combination of Multiply and its inverse, used for more subtle effects.

\[ Shaded = (1 - 2 \cdot Base) \cdot Base^2 + 2 \cdot Hillshade \cdot Base \]

Linear burn: Darkens the image by the brightness of the Hillshade

\[ Shaded = Base + Hillshade - 1 \]

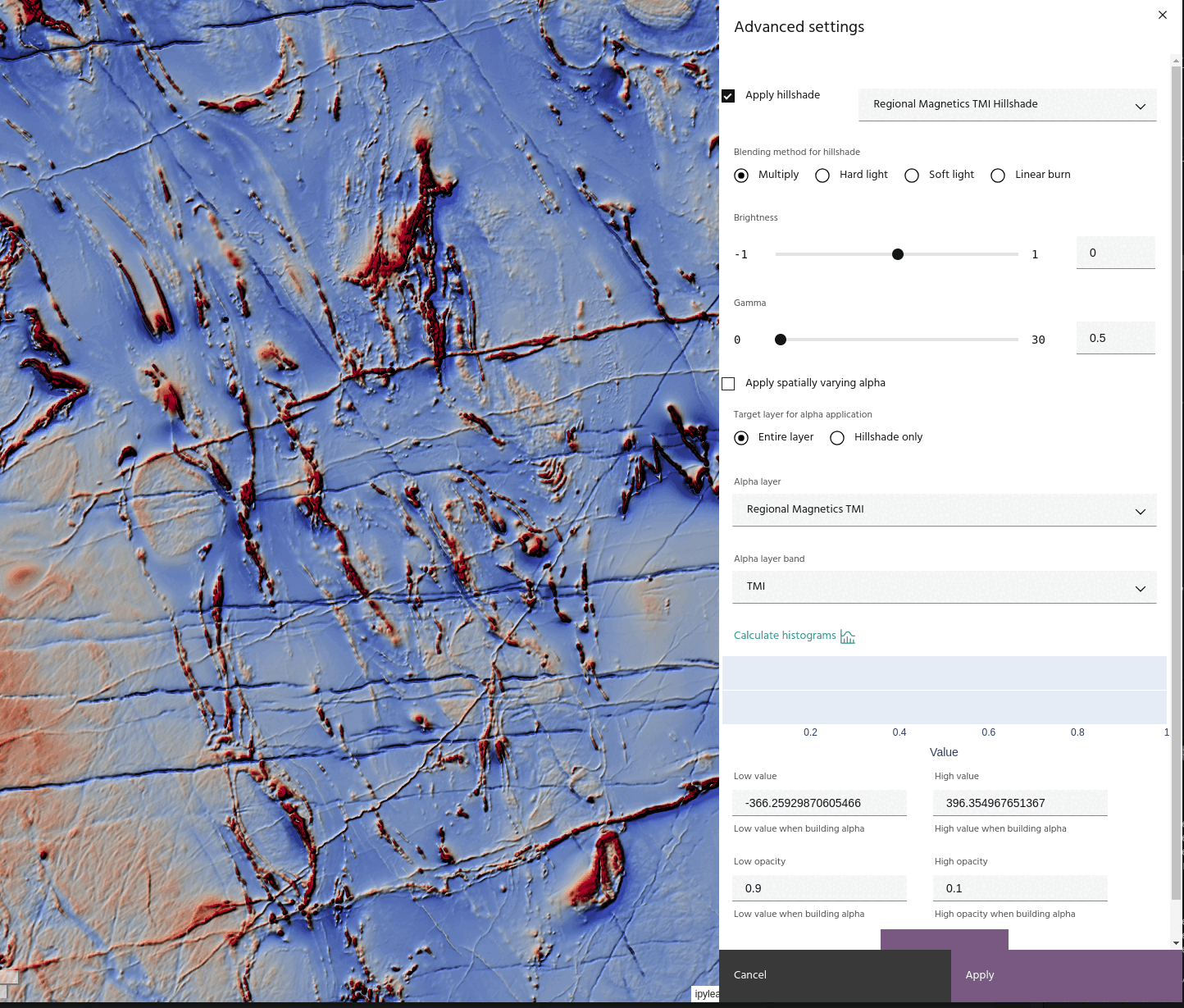

In addition, the hillshade itself can have its brightness or gamma adjusted using the sliders. The hillshade is adjusted by

\[ AdjustedShade = (Hillshade + Brightness)^{1/\gamma} \]

before being applied using the chosen blend method.

Apply a layer as an Alpha band

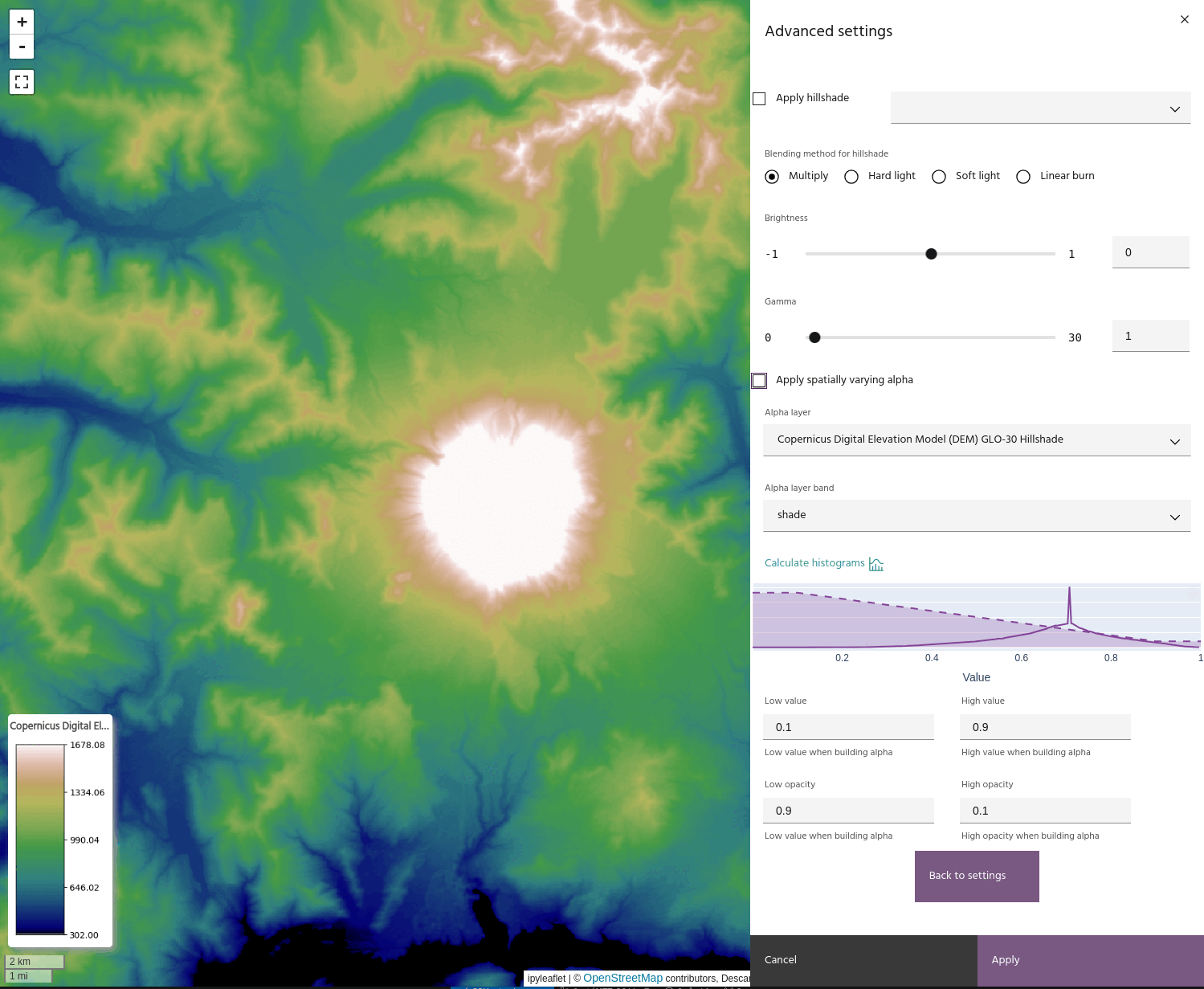

For more advanced displays, layers can be used as spatially-varying Alpha bands for other layers. To use a layer as an Alpha band:

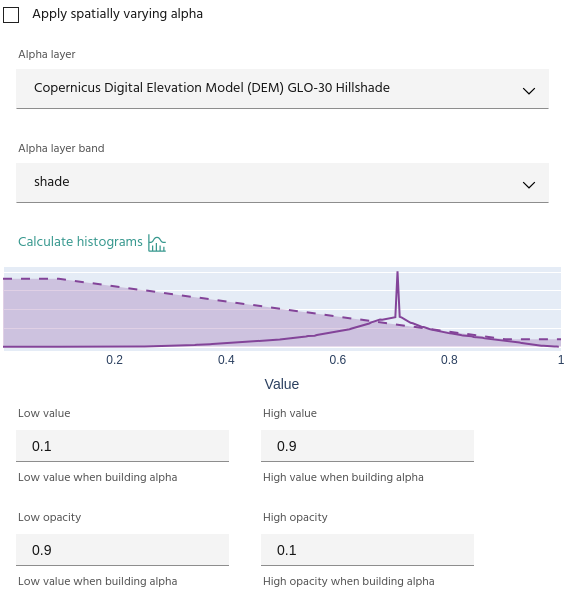

Choose a layer and band to use as an Alpha.
Opacity values are defined using four points: the minimum/maximum opacity values, and the data values to which each corresponds.

Tip

Use the Compute histogram button to see the opacity curve over the data histogram.

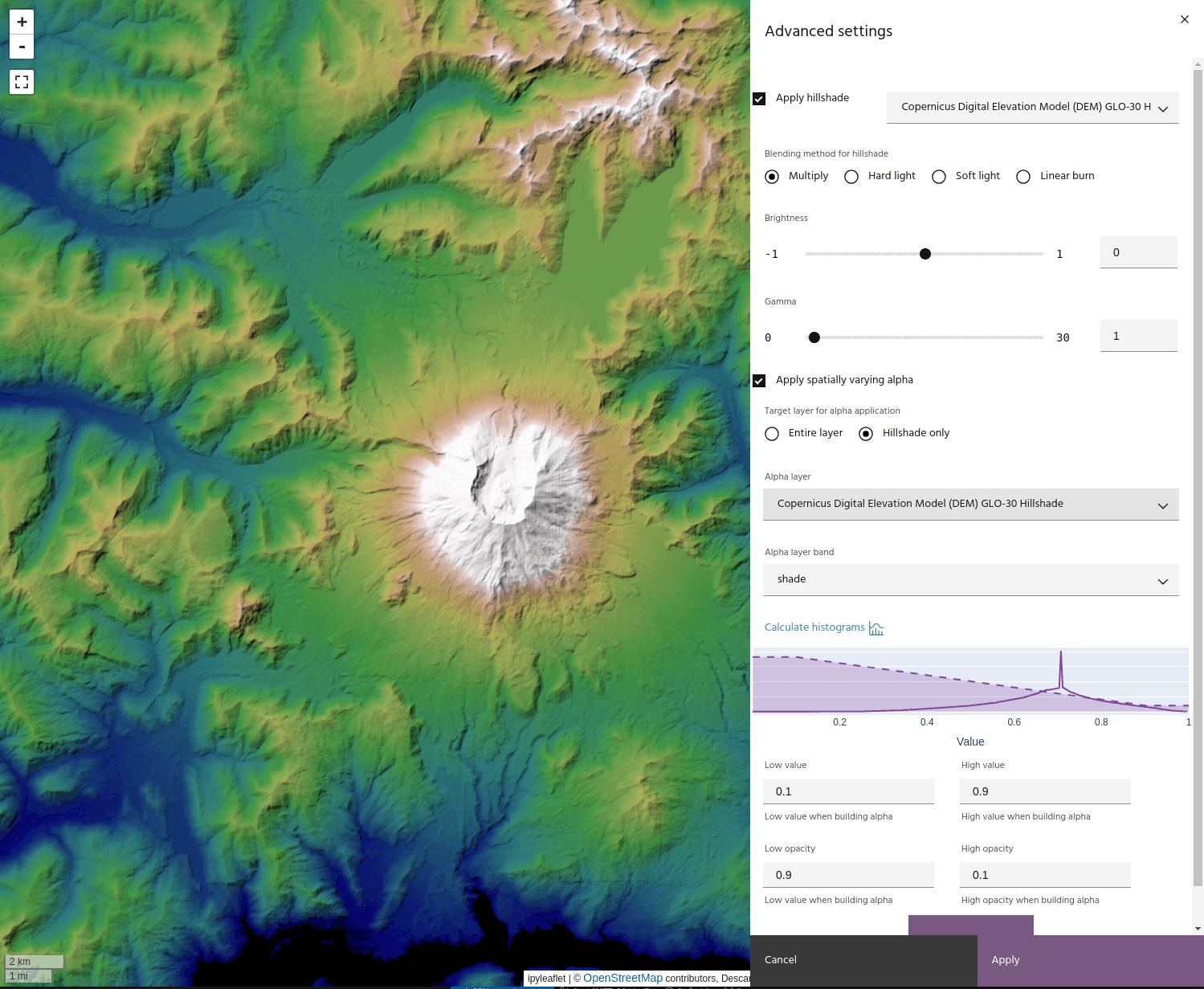

If you have a hillshade applied to the layer, you can apply the Alpha band to the hillshade instead of the layer. This has the effect of bringing back the brightness that can be lost when using blending modes like Multiply.
