Add raster layers to a Marigold project

Add a raster layer from the Catalog

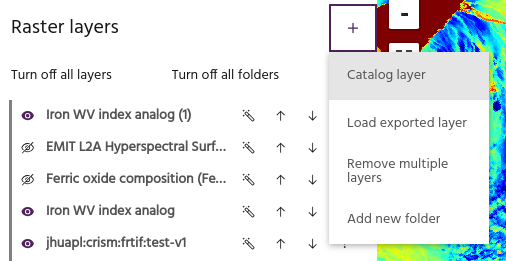

Click the plus sign next to Raster layers and select Catalog layer to add a layer from Catalog. Note that a layer needs to have a marigold tag to be visible to this dialog, contact support for assistance with correctly loading data.

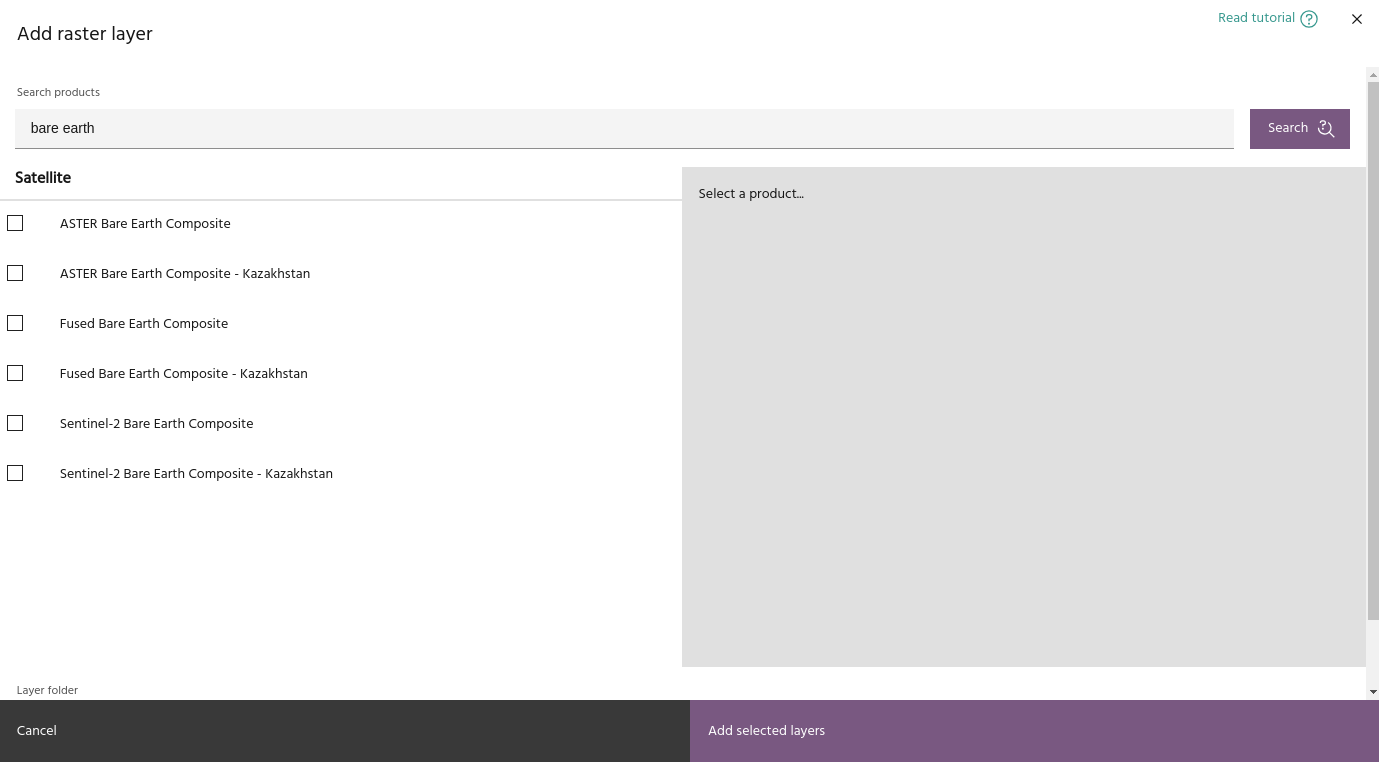

Catalog products will be organized by type for layers where such information is available, and can easily be searched using the bar at the top of the dialog.

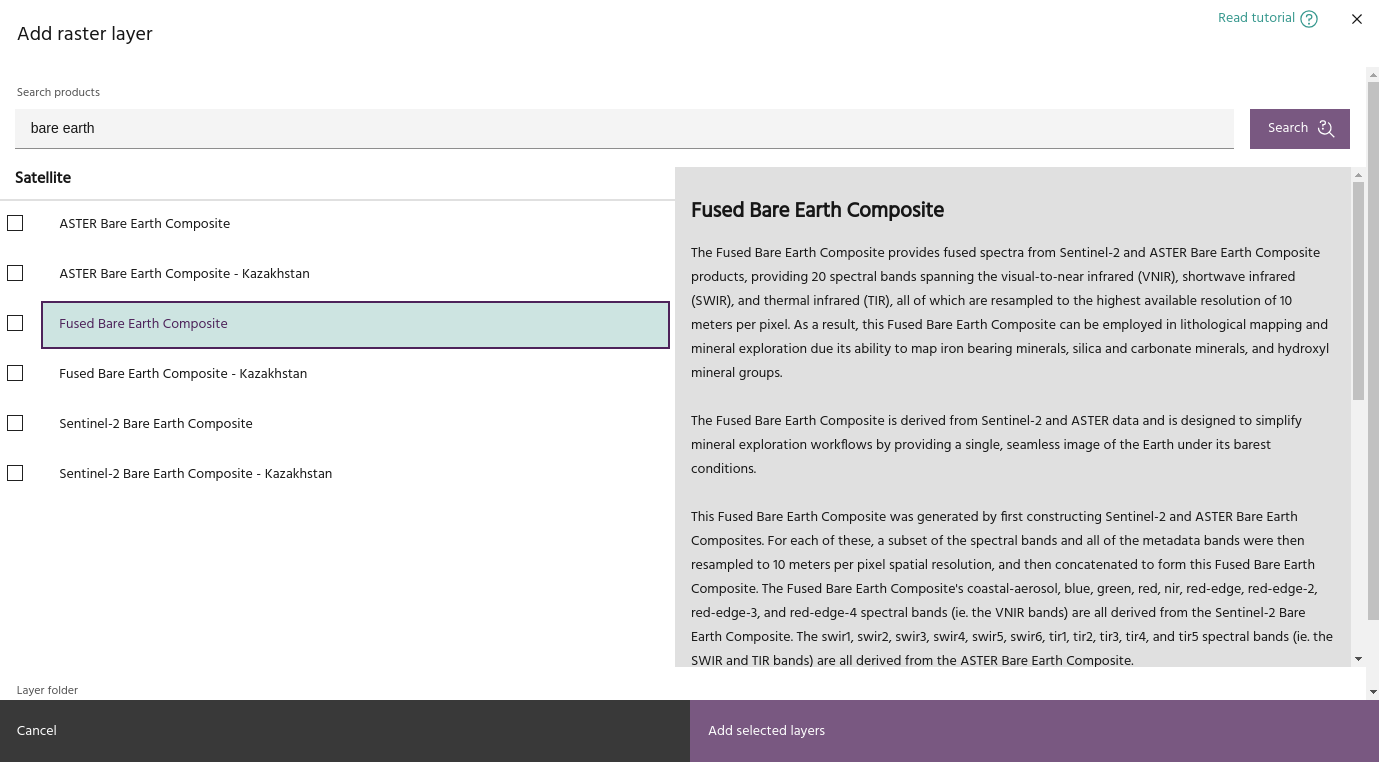

Click on a name to display information about that layers.

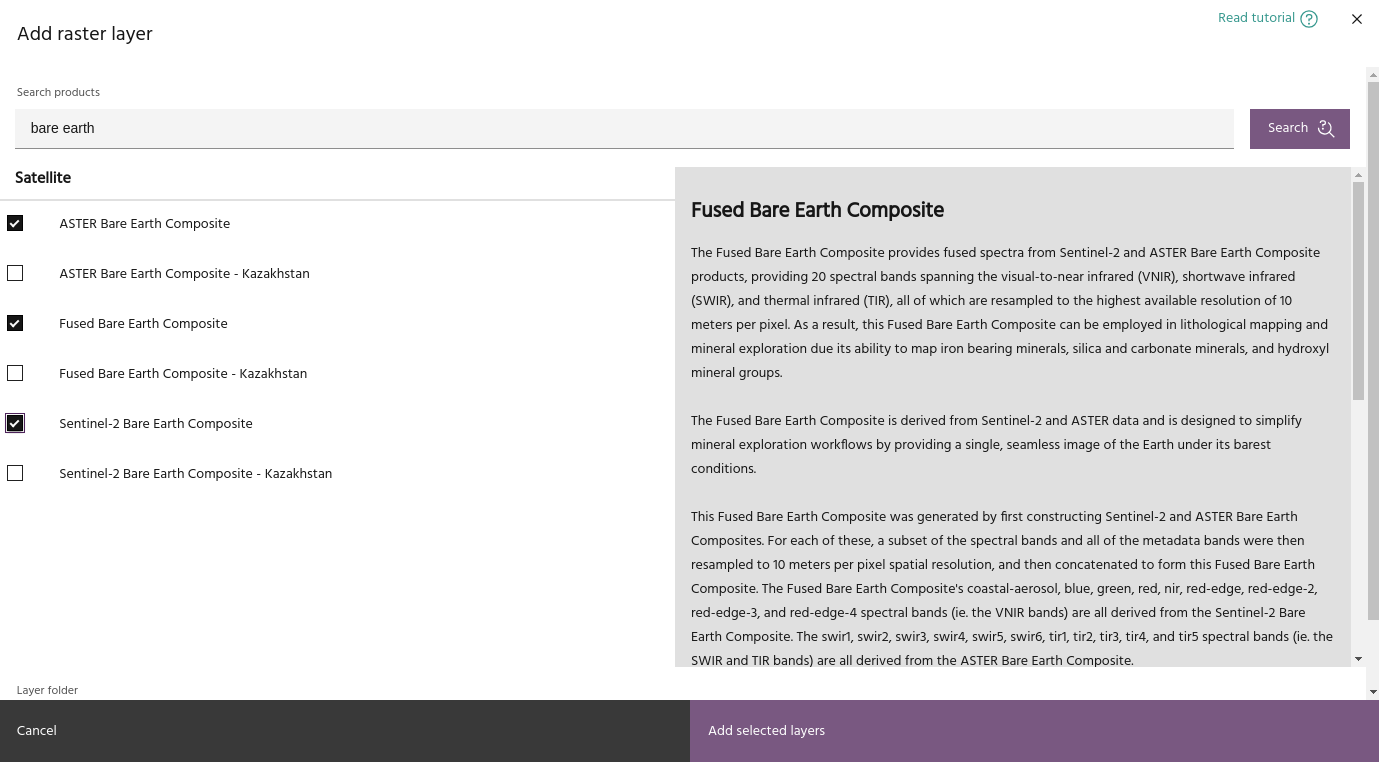

Use the checkboxes to select the layers to add to the project.

Tip

Select a folder to automatically add all the layers to the folder.

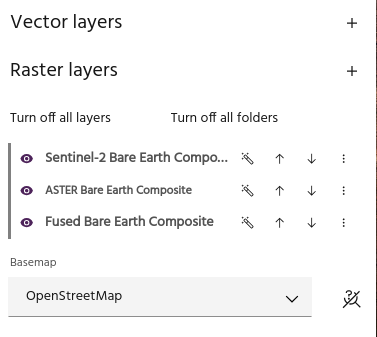

Click Add selected layers to add the layers to the project.


Add an exported raster layer

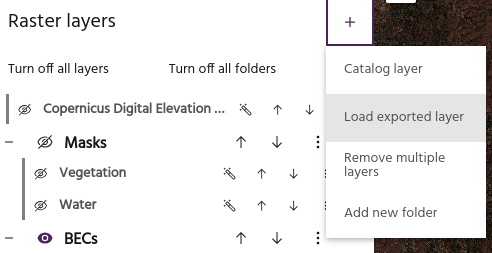

Layers that have been exported from another Marigold project can be imported into new ones.

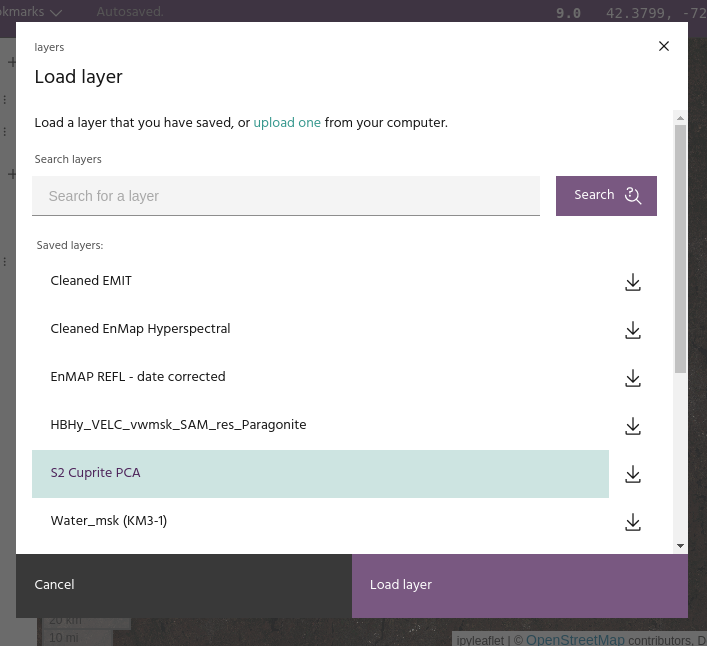

A dialog similar to the load project dialog will load with a list off all the layers available.


As in the load project dialog, layers can be downloaded and uploaded to and from your local computer.
