Vectorize classified layer

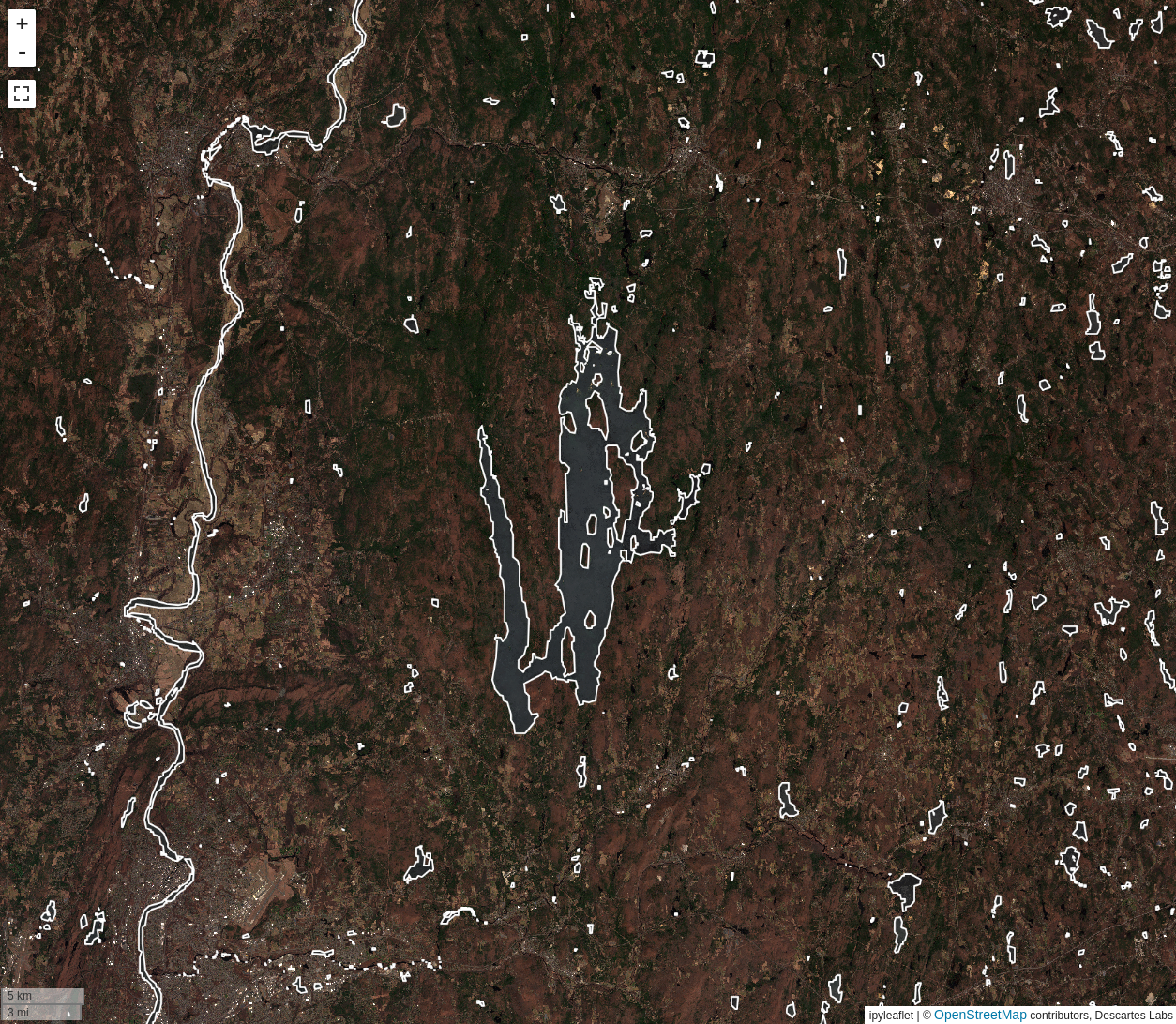

The Vectorize classified layer tool is used to generate a vector layer from a binary or classified raster layer. The operation will generate a vector that corresponds to either the selected classes or the True values of a binary layer.

Usage

Select product and classes

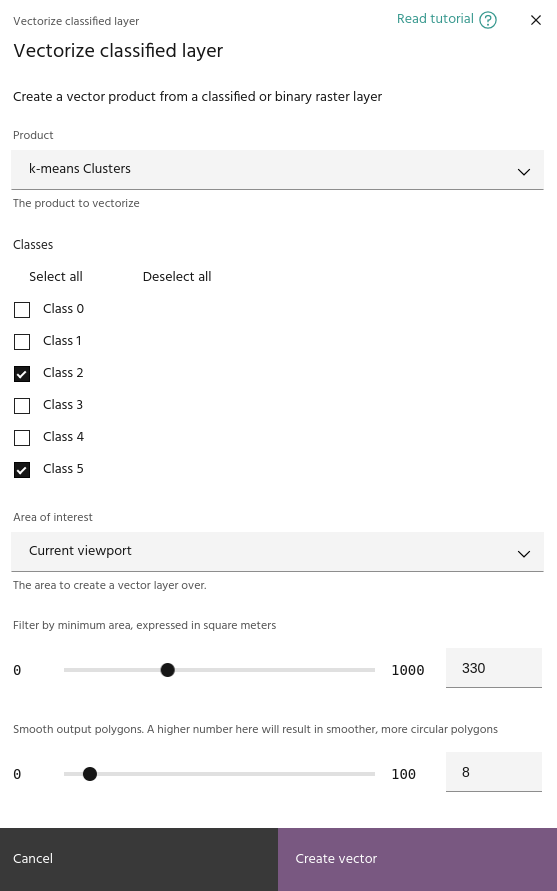

The vectorize classified layer tool allows you to select a binary or classified layer from your raster layers, then select the classes for which vectors will be generated.

Select an AOI

Select the AOI over which vectors will be generated. Note that unlike most Marigold tools, this tool will not generate the vectors dynamically as you move the map around - vectors will only exist within this chosen AOI.

Minimum area

Use this slider to adjust the minimum size for the generated vectors. The minimum and maximum values of the slider will change based on the resolution of the data selected, and will be from 1x1 pixel to 10x10 pixels.

Smooth output polygons

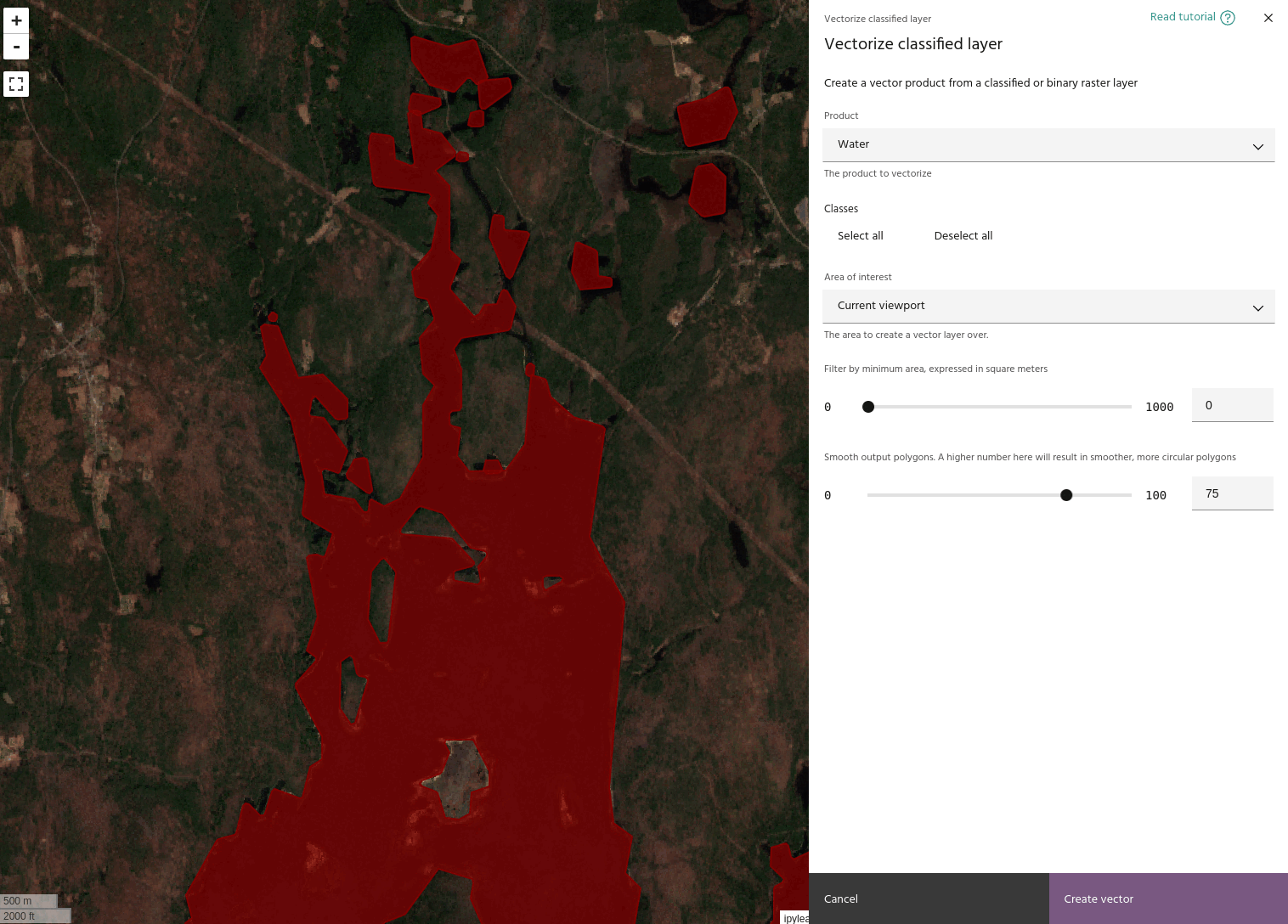

Use this slider to control the smoothness of the output polygons.

Vectorized data resolution

Choose whether to compute the resolution of the vectorized data from the map view, or to use the resolution of the underlying data.
